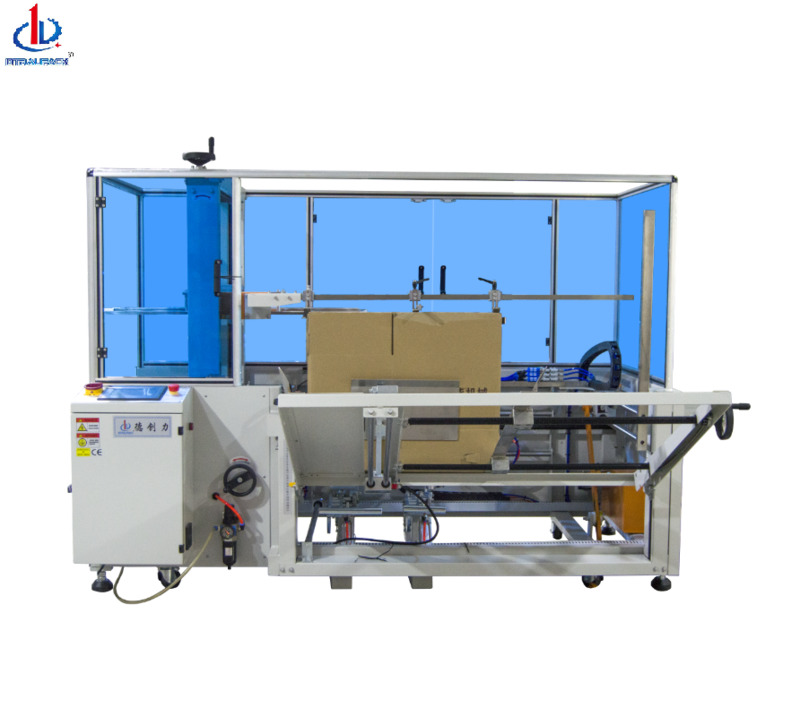

DPK-50 Big box automatic carton case erector machine

1.0 Sets
MOQ
DPK-50 Big box automatic carton case erector machine
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Type: Other
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Bevera
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: PLC, Engine, Bearing, Gearbox, Motor, Gear
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type: Cartons, Case
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V
Power: 200W
Weight: 550kg
Dimension(L*W*H): L2200*W2000*H1650mm
Key Selling Points: Easy To Operate
Unpacking Capacity:: 10-12 Boxes / Minute
After Warranty Service: Video Technical Support, Online Support
Local Service Location: None
After-sales Service Provided: Video Technical Support
Certification: CE
Basic Infomation
Certification: CE
Payment & Shipping Terms
Packaging Details: Exporting wooden case
Supply Ability: 80 Set/Sets per Month
Product Description
Product Description
Model
DPK-50
Unpacking capacity
10-12 boxes / minute
Carton temporary storage
100pcs (1000mm)
Carton size
L:250-700 W:200-500 H:150-500mm
Use electricity
220V 200W
Necessary air pressure
6kg/cm3
Air consumption
450NL/min
Mechanical size
L2300×W2000×H1700mm
Mechanical weight
600KG
Function summary
Automatically open and fold the carton board and seal the bottom tape.
1. It is manufactured by international advanced technology and uses imported parts, electrical components and pneumatic components.

2. The use of vertical storage cardboard, and can replenish the carton board at any time without downtime.

3. It can be used in the same type of carton size packaging at the same time. If you need to change the carton specifications, you can adjust it manually, and the time required is 2-3 minutes.

4. Rationalized design, simultaneous suction molding, and the bottom and the back cover are simultaneously formed.

5. Light weight, precision and durable piece counting performance, no vibration during operation, stable operation, long life and high efficiency.

6. Install a transparent plexiglass protective cover to avoid accidents.

7. Can be used in stand-alone operation, can also be used in conjunction with automated packaging lines.
