Features

Specifications

Type: Gluing Machine

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food & Beverage Shops, Advertising Company

Showroom Location: India

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Ordinary Product

Warranty Of Core Components: 1 Year

Core Components: PLC, Pump

Condition: New

Application: Commodity, Medical, Machinery & Hardware, APPAREL

Packaging Type: Cartons, Film

Packaging Material: Plastic, Wood

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 380V

Dimension(L*W*H): 16000*2000*1500 MM, 16000*2000*1500 MM

Weight: 3200KGS, 7000kgs

Warranty: 1 Year

Key Selling Points: Competitive Price

After-sales Service Provided: Engineers Available To Service Machinery Overseas, Free Spare Parts, Video Technical Support, Online Support

Certification: CE, CE

Paper Weight: 180-800gsm Paperboard, ABCEF Flute Corrugated Cardboard

After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Local ServiceÂ Location: Egypt, Canada, United States, Italy

Basic Infomation

Certification: CE, CE

Payment & Shipping Terms

Packaging Details: First packed by plastic film, then put in vacuum bags, at last packed in wooden boxes or put on metal pallets.

Supply Ability: 30 Set/Sets per Month

Product Description

This series of products are mainly devoted to the research and development of high speed and high efficiency, card box and corrugated paper box, and the cost of purchasing and equipment management. This series of products using modular design, convenient customer in different types of product processing, upgrading and purchase requirements, and can be upgraded in a timely manner and does not affect the use of the whole set of equipment and the processing performance of the original product. Can be achieved in the customer's production has not changed and the product type changes, the need to repeat the purchase of different processing equipment.

Model	GSF-850C4&6	GSF-1100 C4&6
Paper Thickness	200-800gsm paperboard,ABCEF Corrugated boxes	200-800gsm paperboard,ABCEF Corrugated boxes
Box Type	Standard box, double sides, lock bottom box, flat mouth box.	Standard box, double sides, lock bottom box, flat mouth box.
Max Speed	400m/min	400m/min
Power	17KW	19KW
Weight	7000KGS	9000KGS
Size	162.01.5m	162.31.5m
(C.A,P):	6par	6par
(C.A.E)	6/h	6/h
(C.A.V):	40L	40L
(C.A.E)	6/h	6/h
( Optional) :Cold Glue Syestem: 3 spary Gun; Plasma System, according to actually need.

Box Type

_{·Humanized design,a hexagonal wrench can adjust most of the parts,debugging easy;
·Touch Screen, button, remote control distance, three panels of the trinity are operating equipment. Convenient and quickly.
·The machine wallboard and some complex casting using computer laser cutting, dominant board conditioning treatment after hot and cold.
·Parts design, processing precision, good stability, high speed low noise, good durability.
·Bearing adopts Japan NSK bearing, the main shaft adopts hard chrome steel rods, fastening bolt use 1.9 on the richer scale.
·Main motor adopt Taiwan TECO brand, pressing machine adopt Taiwan SHENG BOND precision CPG brand.
·Master electrical frequency converter, PLC. Schneider Brand, the higher WEINVIEW touch screen TAIWAN BRAND.
·Wedge pulleys and wedge belt adopts FRENCH Hutchinson Brand.Conveyor belt by Swiss RAPPLON, Flat belt adopt Japan NITTA belt.}

Detailed Images

Feeding

·Independent servo motor drive, high speed operation Is accurate transfer paper, so as to achieve the best capacity;
·Large micro adjust paper knife, lateral baffle width adjustment is convenient
·Vortex pump configuration Independent suction chamber and the valve, increase rubber belt paper friction with smooth paper;
·Scalable paper stack at the back of the support for longer box.

Paper Alignment

· Independently adjustable side gauge, paper work on a transverse stretching device and delivery by a parallel guide Bracket, ensure paper parallel alignment;
·Both sides can realize alignment function from the device, the operation Is simple rapid

Pre-folding

·The upper left glue flap 180° pre-folding, the third line 135° pre-folding;

·The First and the third line folding open the device

Lock bottom

·Equipped with bottom combination adjustment mechanism, ideal design and easy operation,high stiffness spring hook to ensure accurate action;

·Adjustable hook device, modular design, significantly reduced the transform box type of set-up time, convenient Installation and transformation of attachment;

·Configuration and high elastic hook module;

Gluing Tank

·Paste on the drum using electronic spray adhesive system, according to the model select configuration with two or three sets of cold glue guns;
·Other top electronic spray adhesive system configuration can choose according to the needs of aircraft configuration;
·Cylinder for each side of the paste, a large capacity design, do not jilt or leak glue during high-speed working.

Folding Section

·Accurately completing the second line, the fourth line 180 degrees combination; Around 180 degrees abduction Angle Is adjustable, with a belt transmission devIC8, which can effectively ensure the parallel alignment, folding carton samp1e accurately closed;
·Two sets of bracket and the bracket, the conveyor belt width is 25 mm, the conveyor belt Width & 34 mm, 25 mm kidnapper broadband 34 mm l 40 mm 1 50 mm;
·Equipped with the belt tension automatic control system, easy to tear open outfit;

Conveyor Section

·Independent motor drive; (follow) manual and automatic operation mode;

·According to the different length of the box, conveyor belt pressure driven by motor, can move, configure automatic correction device; Pressure adjustment with pneumatic system, it is convenient adjustment

·Throughout the total length of 5,6 meters effectively conveying, available length 3.6 meters, to extend the time of cartons of adhesive, improve the quality of adhesive;

Packing & Delivery

New Star Machinery International Limited, based on Wenzhou Fei Hua Printing Machinery Company, is engaged in the manufacture of all kinds of post-press machines and paper packaging equipment.

New Star manufactures advanced equipment with higher productivity, longer life, less maintenance and trouble free performance. Our main ideas for machines are "simple to use and they can be operated by non technical staff to give consistently higher performance". We also provide good after-sales services.New Star exports products worldwide and has an extensive service network. We are engaged in the design, engineering, marketing and service of our equipment. In order to remain the leading position in this field, we maintain the highest quality control standards and continuously invest capitals in research and development. We warmly welcome all friends from this field to cooperate with us to improve our standards.

Our Service

* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineer is available to service machinery overseas.

Contact with us

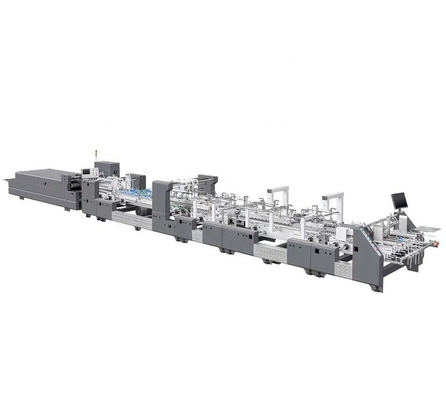

NEW STAR GFG-850 4 Corner Crash 6 Automatic Lock Bottom Carton Folder Gluer Machine of Products Gluing Machine
