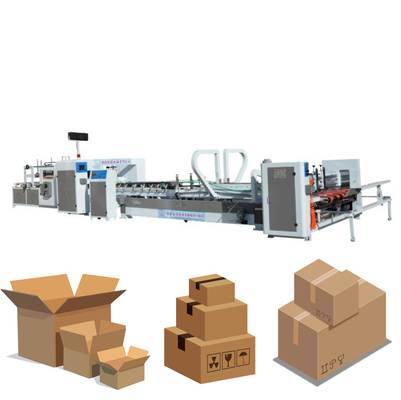

corrugated paperboard automatic folding gluing machine
machine characteristic
1,Average gluing speed should be 8000-10000pcs per min, which improves productivity greatly.
2,Two workers should assist to deal with whole producing line. Paperboard feeding,gluing,folding ,adjusting, accounting can be done automatically.
3,Adopted leather belt delivery feeding with airdraft.
4,All convey belts were tooth nailed for accuracy . It equipped re-pressing function so that even more accurate when folding.
5,Automatic re-adjusting if happen paper skew. Lowen defective rate.
6,Improving folding accuracy if happen paper skew through differential adjusting function. Scissors shapetial could not happen
7,Adjusting hen stacking . All carton can be poled up according to a certain quanlity.
8,Can match with automatic strapping machine.
main technical parameter
|
Model |
HL-2400 |
HL-2600 |
HL-2800 |
|
Max .cardboard |
900*2200mm |
1200*2400mm |
1200*2600mm |
|
Min .cardboard |
300*800mm |
300*800mm |
300*800mm |
|
Overall dimensions |
12800*2850*2250mm |
12800*3050*2250mm |
12800*3250*2250mm |
|
Power required |
10kw |
11kw |
12kw |
