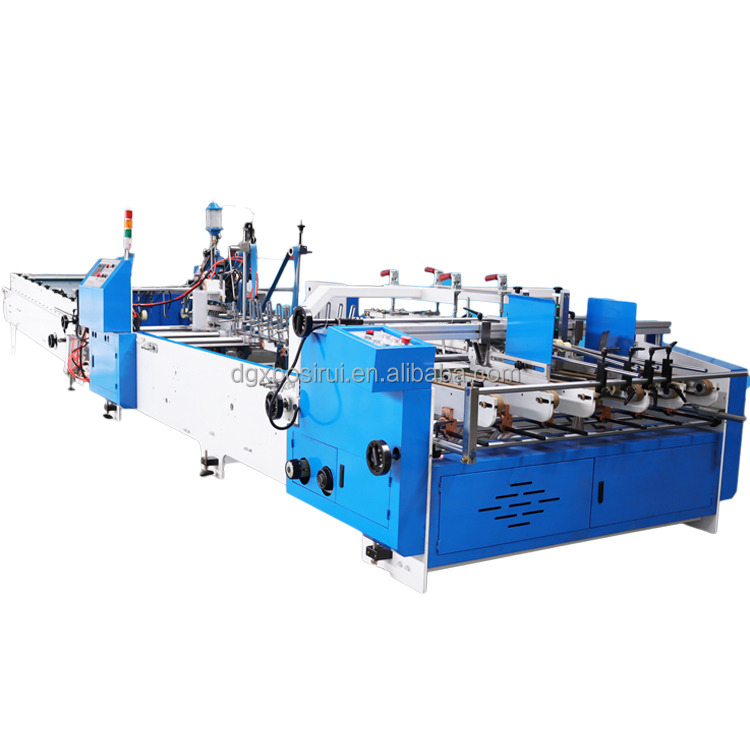

4/6 corner automatic folder gluer semi auto lock bottom folder gluer envelope folder-gluer machine
Product Introduction:
1. The steel plate of the whole machine is cut by laser, punched and then folded, so that the equipment structure is more reasonable, the assembly is more accurate, and the operation is more stable.
2. The power transmission adopts the synchronous belt, which is fast, low noise and safer.
3. PLC computer control and frequency conversion speed regulation operation are more convenient.
4. The machine can paste fine corrugated boxes (such as E\F\N\ type) in addition to paste card boxes
5. The maximum speed of the whole machine is up to 300m/min, and the standard box is up to 50,000g/hour.
Technical index:
1. Linear speed: 0-300m/min
2. Applicable paper quality: 180~650g/m2 cardboard, E-shaped corrugated paper (micro corrugated)
3. Basic form of box-gluing: Basic form of box-gluing: general side sticking, both sides can be used
4. Paper feeding method: automatic continuous paper feeding
5. Reverse method: fold in half
6. Use adhesive: solute type
7. Power required: 2.2kw, AC220V
8. Weight: 1500kg
9. Dimensions: 6400×1000×1400mm
10. Counting range: 0~999999 (full automatic counting)
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
