Home /Products/Automated Case Erector/Automatic Corrugated Food Box Crate Erector Carton Band Sealing Horizontal Forming Bottom Match With Packaging Production Line

Automatic Corrugated Food Box Crate Erector Carton Band Sealing Horizontal Forming Bottom Match With Packaging Production Line

1.0 Sets
MOQ
Automatic Corrugated Food Box Crate Erector Carton Band Sealing Horizontal Forming Bottom Match With Packaging Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Packaging Line
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Energy & Mining, Other
Showroom Location: None
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Textiles
Packaging Type: Cartons, CANS, Bottles, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Case
Packaging Material: Plastic, Paper
Automatic Grade: Automatic
Driven Type: Electric Pneumatic
Voltage: 220V/380V
Weight: 500 KG
Warranty: 1 Year
Key Selling Points: Multifunctional
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: Bearing, Motor, Pump, Gear, PLC, Other, Pressure Vessel, Engine, Gearbox
Basic Infomation
Payment & Shipping Terms
Packaging Details: Spray anti-rust oil, fix the machine on the pallet ,the machine is also wrapped with stretch film and sponge pads, prevent the machine from impact ,moisture, dust, and covered with sea export plywood case.
Supply Ability: 100 Set/Sets per Month
Product Description

Welcome to >>>

Shanghai Wanerxin Intelligent Technology Co., Ltd.
Products Description

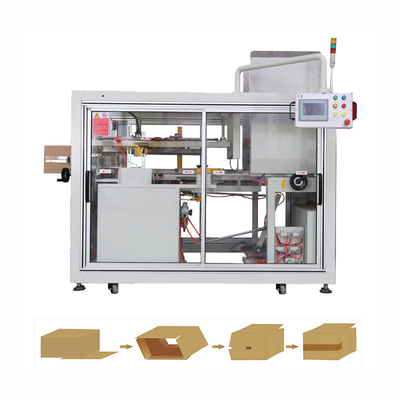

Automatic horizonta carton box erector machine
The High-speed Carton Erector is horizontal carton box forming machine, using cam drive system combined with a connecting rod to control the entire machine action, machine runs accurately, stable and durable, speed can reach 50 boxes/min. small machine, easy to operate and to adjust. Highly recommended for mass production companies.
Specifications
Product Name
Horizontal Carton Erector
Roller
Stainless steel type
Speed
Up to 50 cartons/min
Adhesive Tape Width
W48mm/60mm/75mm
Machine color
White/yellow or customized
Carton Storage Quantity
80-100pcs (800-1000mm)
Air Consumption
300-450NL/min
Air Compressing
5-6kg/cm³ /0.6Mpa
Table Height
960+30 mm
Carton Size
L240-510 x W190-400 x H120-400mm
(220≤W/2+H≤570, L+W≤870)(for 2”or 2.5”)
Machine Size
L1800-3120×W1800-2100×H1400-1900mm
Power
1KW 220/380V 50/60Hz
Machine Weight
350-1200Kg
Machine Direction
Right to left

Features

1)Siemens PLC interface control 2)Perfect bottom seal 3)Up to 50 ctns/min 4)Carton capacity up to 80 pcs 5)Hot melt glue carton seal available 6)HMI touch panel control system 7)Replace the carton size and adjust the machine in 1-2 minutes. easy operation and maintenance,stable 8)Glass safety cover, automatically stop when the door is open 9)Suitable for single machine operation or connecting production line. Standard machines are available in stock.Accept non-standard size customize.

Please click here >>> Contact us for more factory prices,shippping and discounts
WANERX - Intelligent integrated packaging service provider
As a high-end technology-based enterprise focusing on R&D, manufacturing and sales of carton packaging, palletizing, cartoning machines and so on, Wanerxin has been unanimously recognized and praised by countless domestic and foreign customers with its high-quality products and overall solutions. It also helped some customers to complete the company's transformation from manual operation to automated operation, which greatly saved labor costs, increased output value, and truly maximized benefits.
Packaging & Shipping
Wrap film
Plywood Case
Sea Shipping
FAQ
Q1: What is your company’s main products? Automatic flat cardboard palletizing system welding wire coil and electrode rod automatic packaging system The end of packaging line Carton & case erector,Carton & case packer,Carton & case sealing,Inkjet coder,Palletizer machine,Film shrink wrapper packing machine,etc Our packaging line can be customized according to the customer's site requirements, capacity requirements, and other requirements.
Q2:Are you manufacturer or trading company? We are manufacturers and we have our excellent service team all over the world.We offer excellent after-sales service.
Q3:Where are you located? Is it convenient to visit you? Our factory is located in Shanghai,China. So Traffic is convenient.
Q4:How can you guarantee quality? 1.We have completed working system and procedures and we follow them very strictly. 2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced. 3.The electrical pneumatic components are from the world famous companies, such as Germany's Siemens, France’s Schneider,etc. 4.We will do strict test running after the machine is finished.
Q5:Can you design the machine according to our requirements? Yes. We not only can customize the machine according to your technical drawing, but also can make new machine according to your requirements.
Q6:Can you offer overseas technical support? Yes. We sure support dispatch engineers to your company to set the machine and train your worker if needed.
Q7: Why our customers trust and choose us ? 1.Manufacturer 2.We Have Stocks 3.Delivery Fast 4.Senior Engineer 5.Competitive Price 6.High Quality 7.Strict Quality Control 8.Years of experience in the packaging industry 9.Provide Test 10.Varity of Goods 11.Excellent After-sales Services 12.Advanced Machinery and Equipments.
Q8:If you will send a inquiry, what we should know: 1. What's kind of products you are production and want packing ? 2. Please tell me the production speed ?  3. We also need to know you packing pattern ? 4. How about you product size ?
If you have more questions on our product, please send us an inquiry in the below. Commonly, you will get reply in 24 hours !
