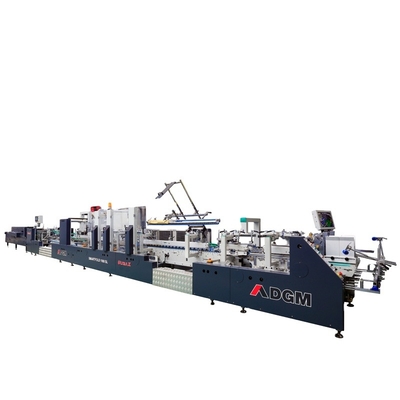

High Speed ​​Automatic Food DGM Corrugated Line Box Folder Gluer Machine for cartons box automatic folder gluer

1 Set
MOQ
$30,000.00(1 - 1 Sets) $20,000.00(>=2 Sets)
Price
High Speed ​​Automatic Food DGM Corrugated Line Box Folder Gluer Machine for cartons box automatic folder gluer
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Gluing Machine
Applicable Industries: Food & Beverage Factory, Printing Shops
Showroom Location: United States, Italy, India, Mexico, Russia, Thailand, Algeria, South Africa, None
Video Outgoing-inspection: Not Available
Machinery Test Report: Not Available
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: PLC, Bearing, Gearbox, Motor, Gear, Pump
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, APPAREL, Textiles
Packaging Type: Cartons
Packaging Material: Paper
Automatic Grade: Automatic
Driven Type: Mechanical
Voltage: 380V
Dimension(L*W*H): 18.45* 1.6 *1.9 M
Weight: 12.2 KG
Warranty: 1 Year
Key Selling Points: Automatic
Speed: Max. 400m/min
Inching Speed: 10m/min
Thickness Of Folded Box: Max. 20mm
Blank Width: 800mm
After Warranty Service: Field Maintenance And Repair Service
Local Service Location: United States
Basic Infomation
Payment & Shipping Terms
Packaging Details: wooden cas
Supply Ability: 20 Set/Sets per Month
Product Description
Product Description
Equipped with advanced state of the art technologies for fast job changeover.
SMARTFOLD ULTRA X 800 – PC suitable for straight-line, crash-lock bottom & double wall boxes
SMARTFOLD ULTRA X 800 – SL
suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes
SMARTFOLD ULTRA X-800 folder gluer models are equipped with advanced state of the art technologies for fast job changeover,especially focussed on multi-type work capabilities with medium-long to shorter run lengths in mind. Speed up to 500 meters/min.Motorized carriers, full and sectional job/memory recall, extended pre-folding section up to 3 meters in total length. Lifting upper carrier on pre-folding section. New ¨universal multi-function section¨ with integrated ¨bump & turn¨ allows to turn car-tons90º and its alignment. Pre-breakers device by outer belts on both sides. New servo drives technologies, extra length crash lock bottom section. Extra folding & closing section with collapsible central carrier, able to produce complex carton structures, straigh line, lock bottom, 4 & 6 corner cartons and more. DGM has been committed to offer the industry an affordable, cost effective and complete state of the art solution for the folding and gluing needs of today´s converter and market demands, one of the best cost/value/productivity equipment combination to be of-fered to the industry.

1. Feeder section

* Driven independently by servo motor.
* Friction feeder with 6 untimed feeding belts, 30 mm width.
* Electronic pile vibrator.
* Lateral feed gates fully adjustable to the width of the blank.
* Three adjustable front feed knives with carton spacing carriers (bogies).

2. Side register section

* Driven independently by servo motor.
* Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank
alignment.

3. Pre-folding section

* Driven independently by servo motor.
* Extra length pre-folding section, 3 meters long.
* Left hand glue flap pre-folder up to 180º.
* Third crease line pre-folder up to 135º.
* 1st and 3rd crease openers.
* Lifting right upper carrier by pneumatic system, for easy setup.

4. Multi-function section

* Driven independently by servo motor.
* Extra length crash lock bottom section.
* 3 sets of upper and lower transfer carriers along the section.
* Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately.
* Set of accesories for “B” lock bottom.
* Integrated ¨bump & turn¨ allows to turn cartons 90º and its alignment.
* Pre-breakers device by outer belts on both sides.

5. Gluing unit

* One lower (left side) gluing tank.
* Easy to remove and clean.
* Standard 3 & 5 mm width glue disc.
* Optional electronic upper gluing system by guns, upon request.

6.  Folding & Closing section

* Driven independently by servo motor.
* Extra length folding & closing section, 4.5 meters long.
* Collapsible central carrier by pneumatic system, saving time for set-up and allows to run small boxes.
* Lifting central upper carrier by pneumatic system.
* Smooth and accurate folding of 2nd and 4th crease.
* Outer folding belts adjustable up to 180º with variable speed.
* Two upper & two lower carriers with 25 mm lower and 30 mm outer belts.
* Width-wise adjustable heavy-duty compression rollers (optional).
* Detectors of proximity between carriers to avoid damages when approaching.

7.  Trombone section

* Driven independently by servo motor.
* Pneumatic box ejector, for quality control without interrupting the flow of boxes
* Upper and lower drive mechanism for length adjustment.
* Equipped with automatic belt tension-adjusting system.
* Continuous and automatic box collection mechanism that ensures a neat trans-fer to the Press section, guaranteeing a well
aligned flow.
* Electronic counter and ¨Kicker¨ for marking batches.
* Squaring device for crashlock bottom boxes.

8. Press section

* Independent motorized section by servo-motors.
* Manual and Automatic speed variation in coordination with a photocell.
* Upper section moves back and forward, allowing for different box length.
* 5.5 m total length with 3.1 m effective pressure length.
* Apron width 900 mm.
* Pneumatic pressure adjustment to avoid marks.
* Pneumatic squaring system with two motorized carriers with belts.
* Motorized device to move the sponge belt across the conveyor.
4 & 6 corner device
Motorized and untimed electronic back folding system with intelligent servo motor technology. It allows accurate folding of all
back flaps by mean of hooks installed in two independent shafts controlled electronically.
Material
Size Information
BOX
SCHEME
Company Introduction
DGM Worldwide Carton Converting Equipment
DGM Machinery provides 360° services. Service process, DGM not only embodies in to pre-sales service, such as helping the customer get to know DGM products, enhancing customer confidence in DGM products, knowing customers ́s individual needs etc., but also in to after-sales service which is the most important aspect to make a big gap from other carton converting manufactures. DGM’s core after- sales service includes:
