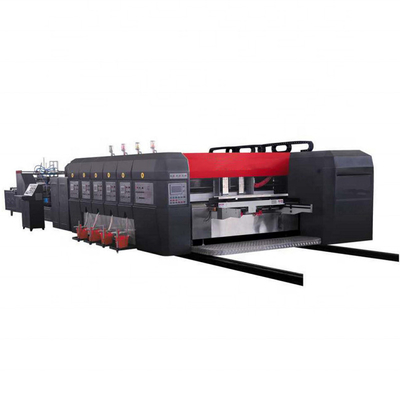

Corrugated Cardboard Forming Machine High Speed ​​Box Making Machine Slotter Die-Cutter Cardboard Flexo Printer Machine/Folder Gluer Online Custom Product

◆Touch-screen and electrical dual control system;

◆Transmission gears adopts high quality alloy steel (20CrMinTi), with hardness HRC58-62 after Carburizing, quenching and grinding.

◆Key free connection decrease the connection clearance, maintain the overprint's precision of long-term printing;

◆With automatic zeroing and memory reset functions;

◆Transmission structure with double oil pump circulating lubrication;

◆Roller vacuum suction transport system;

◆Plate rollers, embossing rollers are made of high-quality steel with grinding and hard chrome plating;
◆Dynamic and static balance correction, Smooth operation;
◆Adopts hanging mechanism, installation convenient and fast;
◆Loading and unloading the printing version is optional of foot switch or electric button to control positive inversion;
◆With feeder system pneumatic automatic lifting device (By feeding will the anilox roller down and contact with the plate, when stop feeding will the anilox roller up and separated wit the plate.)
◆Phase adjusting mechanism with planetary gear structure;
◆The printing phase adopts PLC, touch screen control and electric digital 360 adjusting. Plate rollers with automatic zeroing, dynamic and static phase adjusting;
◆Adjust distance of ±10mm;
◆The printing phase fixing device with Electromagnetic clutch braking mechanism; with the machine separated of adjusting the phase, the braking mechanism will restricted machine rotation, keeping the original printing position.

◆HMI and electric buttons adjustment dual system, can complete the adjustment of slotting height, phase, axial movement;

◆Configured self-locking preload fast transfer mechanism, ensure the long-term accuracy between disk and axis, and slow down the damage to cardboard when pressing line;
◆Pressing line upper wheel wrapped with the quality polyurethane, guarantee a cardboard hardness from destruction;
◆Synchronous linkage electric axial movement make the upper and under pressing line wheel synchronized adjust; self-lubricating wear-resistant guiding mechanism, assurance the long-term correctly and increase durability;
◆Pressing line and slotting wheel axle adopts high quality alloy steel, with grinding and hard chrome plating; respectively be corrected by rough and fine dynamic balancing equipment, to find the best balance;
◆Adopts high quality alloy steel slotted knife, tooth profile blade width of 7mm;

◆Cushion roll, template roller adopts quality steel after dynamic balancing correction, to increase operational stability;

◆By Not die-cutting state template roller and cushion roll will through a cylinder eccentric device automatically disengaged, that can reduce the machine-load when no load, and effectively extend the life of Urethane and knife mold;

◆Mechanical transmission Urethane can move around ±30mm, and with a radial differential device, evenly distributed the wear of cushion roll and thus greatly increase the life of cushion roller;

◆Unique differential speed compensation device, regardless the diameter change of cushion, speed difference compensation device makes urethane roller slide with the template roller, and thus the surface speed of rubber and pad completely manipulated by knife mold, so die-cut carton is exactly the same as the mold.

*The air pressure assist let the cardboard go down , before pat cardboard let is neat,let the carton before and after is flat

*Stacking the left and right is electrical adjust , let the carton stack in middle.

*Before and after baffle is electric displacement.

*Each pile number from 10 to 40 can be set automatically

*Board lifting roller device, follow-up at the bottom of the cardboard insert, heap paper easily.
