Food PLC Control High Precision Shingle Assemble Corrugated Cardboard Box Making Machine

1 Piece
MOQ
$25,000.00(1 - 1 Pieces) $23,500.00(>=2 Pieces)
Price
Food PLC Control High Precision Shingle Assemble Corrugated Cardboard Box Making Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Warranty: 1 Year
Type: Other
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product
Warranty Of Core Components: 1 Year
Core Components: PLC, Bearing, Motor, Gear
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type: Cartons
Packaging Material: Paper
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V/380V
Power: 10KW
Weight: 3000 KG
Dimension(L*W*H): 5500x2200x2000mm
Key Selling Points: Long Service Life
Product Name: Automatic Clapboard Partition Assembler Machine
Host Belt Speed: 15-30 M/min
Longitudinal Clapboard Feeding Track No.: 6
Clapboard Feeding Track No.: 1~12
Working Speed: 40-60( Groups / Min )
Clapboard Thickness: 1.5~7mm
Assembly Length: 120 - 500 Mm
Assembly Width: 120 - 450 Mm
Assembly Height: 70 - 300 Mm
Function: Clapboard Packaging
Basic Infomation
Payment & Shipping Terms
Packaging Details: Case
Supply Ability: 800 Piece/Pieces per Year
Product Description
Products Description

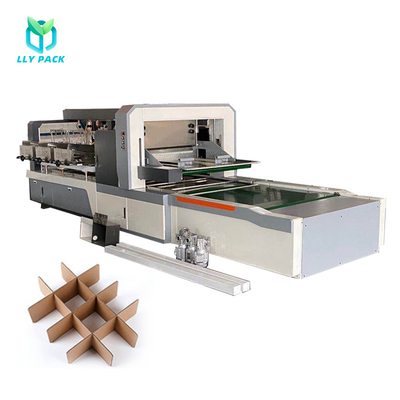

Clapboard Partition Assembler Machine
⭐Replace the traditional manual operation mode, reduce labor costs, high efficiency and energy saving
⭐Touch screen configuration, simple and intuitive operation
⭐All parts are made of high-quality raw materials, processed by precision equipment, and have a long service life
⭐Scientific and advanced mechanical structure, easy to adjust, short time, easy to use and easy to maintain
⭐Spare parts are selected from high-quality brand products, and the quality is guaranteed
Application
This machine is easy to operate, stable in operation, and high efficient in production. It is used in grid cardboard packaging for beverages, wines, fruits, medicines and electronic products. It is an ideal equipment for various carton industries.
Power supply
380V/50Hz
3 phases - 4 lines
Power
10 KW
Not including the air compressor
Host belt speed
15-30 m/min
Clapboard combining form
3*(1~N )
ln double working station
Longitudinal clapboard feeding track number
6
Horizontal clapboard feeding track number
1~12
Clapboard size
(Length)L=120~500mm
Clapboard thickness 1.5~7mm
(Height) H=70-250mm
(Width)W=120~450mm（double station )
(Width) W=120~900mm(single station )
(Lattice spacing)C=50~150mm
(Lattice spacing) D=30~150mm
Working speed
40-60( groups / min )
Working speed is connected with clapboard size and clapboard combining form.
Note : when the width of clapboard is greater than 450mm , the machine just can work in single station .
Air compressor or air compression station requirement : 6kgf/cm2 .
For the 'special type of clapboard , we can customize the machine as client's wish .

Structural Features

1, Suitable for automatic insertion of various carton partitions and blocks
2,Vertical vacuum sucker sucks and feeds paper, and horizontal servo feeds paper, which is accurate and fast
3,Vertically and horizontally feed the paper at the same time
4,Vertical ESC lifting
5,Transverse paper feeding table adopts electric adjustment (electric type)
6,Electric adjustment of the horizontal grid height (electric type)
7,Double-station paper output
8,Touch screen input control, electric adjustment of grid parameters.
9,The comprehensive use of air control and electric control to ensure the advanced equipment control
10,The compressed air storage tank is used for centralized air supply, the air supply pressure is stable, and the air source is sufficient. Each gas-using equipment takes gas from the main gas pipe and is independently controlled without any influence on each other
11,Equipped with fault detection device, the machine will stop automatically when jammed
