Specification:
It is a fully automatic machine use for making single/double PE coated paper meal box(PE paper:paper coated polyethylene ) It can be manufactured for using in the storage, refrigeration, microwave heating a one-time single-cell paper lunch box.
If the raw material is not PE coated, hot melt glue to seal the box.

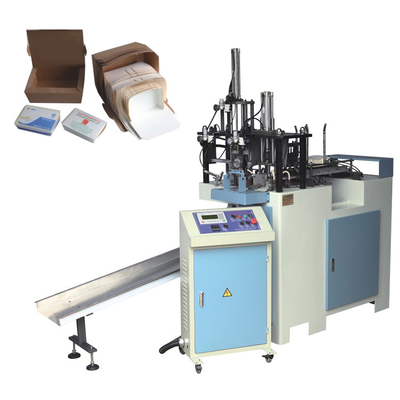

CH-10 Automatic Paper Lunch Box Forming Machine runs the whole procedure of auto paper feeding, heating (hot air, by hot air generator) and forming shape, auto transfer to the connection. This equipment has stable performance, automatic detection and alarm function.
Features:
1. All the meal box forming process including, paper feeding, folding, sealing (sealed by hot air) and collecting is finished automatically.
2. Compact structure, mold exchangeable, it can make many different types of paper meal box by changing molds.
3. Stable run, it runs very stable even at the speed of 60pcs/min.
4.High configuration, machine components with CE approval
5. Trouble free, tested by customers from many countries.
Technical Parameters:
Item | CH-10 Automatic Paper Lunch Box Forming Machine |
Size(L*W*H) | Max 160*100*40 Min 100*60*20 |
Rated Productivity | 55-60 PCS/min |
Configuration Power | 6.5kw |
Total power | 4 KW |
Power source | 380V |
Air consumption | 0.18-0.25m3/min;0.45Mpa; |
G. Weigh t | 600 Kg |
Dimension (L x W x H) | 1400*840*2000 mm |
We can make the machine as per customers' specific requirements | |
Engineer service and after sale service: Spare parts guarantee for one year, and we can send technician for installation and training at the cost of buyer.
