Automatic high speed burger paper lunch box making machine
Feature:
1.Feature of stereo box die-cutter: high efficiency, reaches 180pcs/min
2.Multifunctionality: can manufacture the products such as meal box, chips box, stereo box or burger box with different specifications on one machine only by changing its molds.
3.This machine applies water-based adhesive coating device, attains high efficiency and very high precision. Water-based adhesive, as water soluble adhesive compostion, is a kind of food-grade glue.
4.Most of the machine applies high-quality sealing bearing, prevents from dust or liquid penetrating and impacting the service life of bearings, with long service life and good stability.
5.The whole is driven by high-quality tinming belts and ensures almost zero error during its operation.
6.Main mould employs pine wood, enjoys high efficiency when replacing its mould.
7.Can automatically collect, store and count finished products, and install additionally counter as per the requirements of customers.
8.The machine applies PLC intelligent control system, and automatically stop when there is paper jamming or no paper. It can avoid unnecessary harm caused by the contact between worker and operation mechanism during the production process.
Main parameter:
Paper Length | 100-450mm |
Paper Width | 100-550mm |
Box Angles | 10°- 40° |
Box standard size | 50*50--320*320mm |
Edge banding height(H) | 15-200mm |
Occupancy of machine | 1.2m*4m |
Production speed | 60-160pcs/min |
Bonding/Gluing device | Water-based adhesive |
Paper thickness | Max 1.5mm |
Electrical requirement | 4kw/h |
Air requirement | 6kg/cm²*200L/min |
Equipment size | 3.48m*1.32m*1.5m |
G.W. | 2T |
Package measurements | 3.5m*1.32m*1.5m (L*W*H) |
Model | ZF800 |

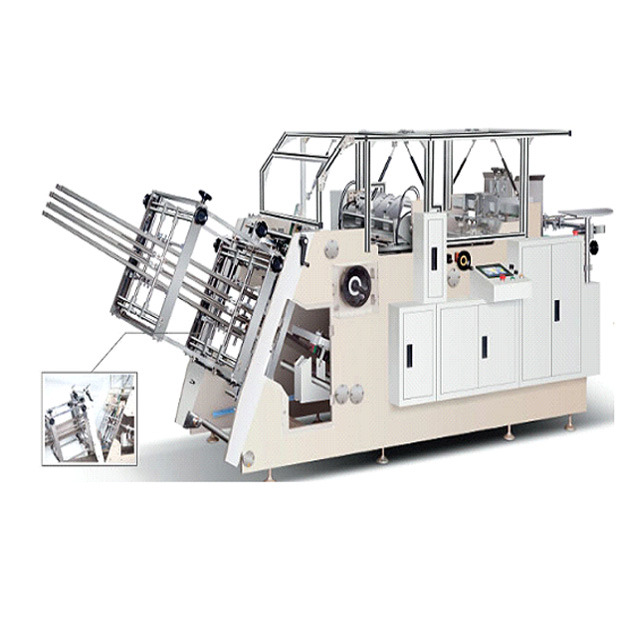

Machine picture:
Sample picture:
