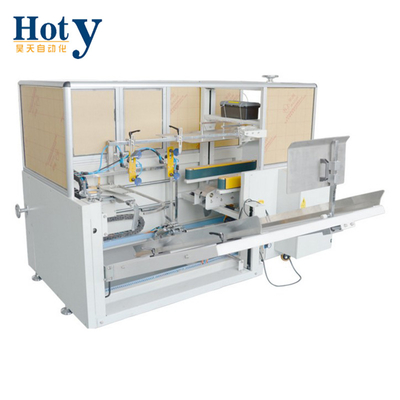

Top Quality Fully Automatic CLOTHING Carton Opening Machine Case Erector For Box Packing

Top Quality Fully Automatic Carton Opening Machine Case Erector For Box Packing

1. Definition of the opening box machine

Carton forming machine is also called out of the machine and its automatic carton forming principle is to point to perform unpacking, forming, under the bottom of the cover, and completed the part of the tape paste, open the folded cardboard box board, according to certain procedures or at the bottom of the box, then tape sealing after delivery to special equipment for packing machine.Automatic carton forming machine, automatic box machine is large quantities of automatic carton box, automatic folding under cover, back cover assembly line equipment, automatic tape machine adopts PLC + touch screen control, easy to use, is the automation production indispensable equipment.

2. The structure and characteristics of the opening machine

1. Main components:

Carton storage mechanism, main frame, vacuum box, main drive, box board lifting mechanism, rocker arm lose box, out of the organization, higher institution, cartons short edge folding mechanism, carton long side closed and integer, fork pushed box, carton guide rail, compaction impact bars and hot melt adhesive system, pneumatic control system, electric control system, etc.

HPK - 30 h25

1. Applicable carton specification: L * W * H (mm) : L + W is less than 800mm;W 400 mm or less;H + 1/2 W 500 mm or less;Half 200 mm or less

2. Opening box speed: 20 to 25 boxes per minute

HPK - 03 h40

1. Applicable carton specification: L * W * H (mm) : L + W is less than 600mm;W 300 mm or less;H + 1/2 w 480 mm or less;1/2 W 200 mm or less

2. Opening box speed: 30-40 boxes per minute

Technical parameters

1. Carton storage capacity: 70-100pcs (calculated according to the thickness of the carton)

2. Air source: 6kg/cm squared 450NL/MIN

3. Export table height: 900-950mm

4. Use tape: 48-75mm (with a length of 48mm on both ends)

5. Machine power: 2KW

6. Body part:

6-1, 50 * 100 * 3t flat steel tube forming, outer cover 2t cover plate, surface baking varnish treatment;

The contact part of the carton is 304 stainless steel.

6-3, the linear part of the mechanism is configured with linear axis and linear bearing.

7. Electrical parts:

7-1. Motor: Taiwan li Ming/taibang

7-2. Cylinder: Taiwan yade

7-3. Low voltage appliances: schneider

7-4. PLC: Siemens

7-5. Man-machine interface: kunlun mode

7-6, photoelectric switch, proximity switch: OMRON

7-7. Inverter: mitsubishi;Chuck: FESTO;

7-8, safety door switch protection device;And has the lack of tape alarm function;

7-9, no carton automatic warning to supplement carton function, no tape alarm function

7-10, carton storage is horizontal, can be added to empty carton at any time, not need to stop, save time, improve efficiency, open door safety protection function, door open machine pause and alarm, indicator light flashing

1)Q:Are you a factory or a trade company?
    A:We are the factory.

2)Q:Where are your products distributed?
    A:Our products are distributed all over the world,main markets are Europe,North America, the united Arab emirates, Africa and so on.

3)Q:Can I have a sample?
    A:No.

4)Q:Which port is the nearest ?
    A:Shanghai port or Ningbo Port.

5)Q:What's your lead time ?
   A:Normally 20-30days after we receive your deposit.

6)Q:Logistics?
    A:1.Sea Shipment;
       2.Air Shipment;
       3.Transport by car or train;
       4.Express:DHL,UPS,TNT.

7)Q:Payment?
    A:T/T,L/C at sight,Cash.
