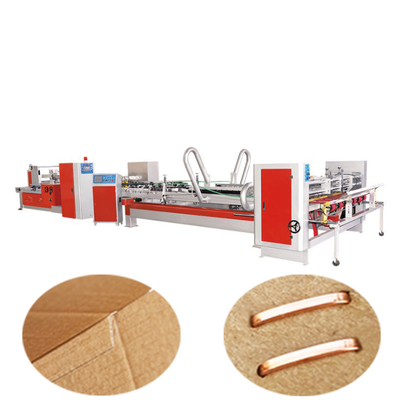

Automatic gluing and nailing machine Corrugated cardboard packaging machine Gluing machine Nail box
| Specification model | 2600 | 2800 |
| Mechanical size (m) | 3.3*14 | 3.5*14 |
| Total power (about kw) | 23 | 26 |
| Maximum cardboard (mm) | 900*2200 | 1200*2500 |
| Minimum cardboard (mm) | 400*1000 | 400*1000 |
| Design speed | 60pcs/min | 60pcs/min |
| Economic speed | 50pcs/min | 50pcs/min |
| Nail distance range nail | 50-90mm | 50-90mm |
| Nail wire specifications | 17#, 18# | 17#, 18# |
The automatic binding and binding machine is composed of six parts: paper feeding part, folding part, nail box part, glue box part, counting stack output and packing part. Frequency conversion speed regulation, simple and reliable operation. Automatic paper feeding, automatic folding, automatic correction, automatic gluing, automatic nail box, automatic counting, automatic packing (optional). Frequency conversion speed regulation, touch screen input data, average nail box speed 40-60 pieces/min. It can effectively overcome the shearing phenomenon in the traditional nail box process, and ensure the accuracy and quality of the nail box and glue box. Greatly save labor and improve work efficiency.
The machine adopts Omron plc control system and magnetic powder brake; Zhuji electromagnetic clutch and contactor; the stapling blade and bottom mold are made of wear-resistant steel. The machine has superior performance. Single nail, double nail and reinforcing nail can be completed at one time. . The machine can order cartons of 1200×2500mm and 400×706mm sizes, the nail distance can be adjusted within the range of 50-90mm, the width of the flat wire is 2.0mm, the thickness is between 0.65mm and 0.75mm, and 3-5 layers of corrugated cardboard can be ordered , In order to meet the quality requirements of different products on the nail box. The machine has the characteristics of convenient operation and adjustment, and can quickly realize the conversion of nail box specifications in three to five minutes.
Feeding department:
Using high-end electromagnetic clutch and electromagnetic brake system, the paper feeding part can be controlled separately, and the operation is simple and reliable.
The pressing wheel is adjustable, suitable for cardboard thickness 2-8mm.
Linked with the folding part, frequency conversion speed regulation.
The front baffle of the paper feeding section and the paper belt are adjustable from left to right.
The cardboard height adjustment structure made of high-quality steel is used to quickly adjust the height of boxes and cardboards of various specifications and sizes.
The suction belt of the paper feeding part is made of high-tech materials, and the tension layer is seamlessly connected to the endless belt to ensure that the machine is in use without worries.
The suction motor and main rotating motor of the paper feeding section are all high-quality products from Taiwan. Highly stable performance motor.
The high-end electromagnetic clutch and electromagnetic brake system are selected to enable the paper feeding section to operate single-sheet or continuously, effectively controlling the waste of cardboard in the specification adjustment and the accuracy of the output cardboard.
The main drive shaft (hexagonal square steel) is made of nickel-chromium alloy and processed by a special process.
Glue folding department:
The main motor adopts frequency conversion speed regulation, the system is noiseless, and the speed regulation is flexible and stable.
Use stainless steel wheels to apply glue, uniform glue application, trouble-free, and glue saving.
The folding part is made of imported friction, super wear-resistant special materials and seamless butt endless conveyor belt, which can accurately and accurately complete the automatic folding of the cardboard.
The gluing department uses high-quality stainless steel gluing wheels for uniform gluing, and glue saving and high efficiency.
The folding part is equipped with a double-track indentation correction device, which can accurately and effectively correct the deviation of the cardboard pit line, so that the entire carton can complete the most accurate folding.
Order box department:
The size adopts fully electric control, and it only takes 2-3 minutes to change the size, which is simple and convenient, and no experience is required.
Adjust the nail distance, use the computer to set the nail distance automatically.
The wire feed wheel is made of high-carbon steel vacuum heat treatment.
The fork knife (imported from Taiwan) is made of tungsten steel precision processing, and it is guaranteed to be used for two years.
Germany produces internal wire synchronous belts.
