Home /Products/Manual Box Gluing Machine/Food Corrugated Cardboard Folding Gluing Machine Cardboard Box Flexo Folder Gluer Machine

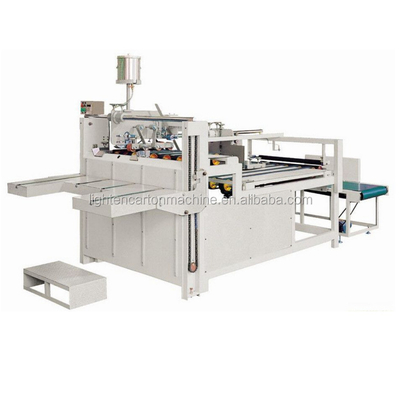

Food Corrugated Cardboard Folding Gluing Machine Cardboard Box Flexo Folder Gluer Machine

1 Set
MOQ
$3,600.00(1 - 1 Sets) $3,400.00(>=2 Sets)
Price
Food Corrugated Cardboard Folding Gluing Machine Cardboard Box Flexo Folder Gluer Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Gluing Machine
Applicable Industries: Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other
Showroom Location: None
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Warranty Of Core Components: 1 Year
Core Components: Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Condition: New
Application: Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type: Cartons
Packaging Material: Paper
Automatic Grade: Semi-automatic
Driven Type: Electric
Voltage: 380V
Weight: 1600 KG
Warranty: 1 Year
Key Selling Points: Easy To Operate
Motor Power: 2.2KW
Basic Infomation
Payment & Shipping Terms
Packaging Details: Standard package with 40ft container
Supply Ability: 180 Set/Sets per Year
Product Description
Product description

YL-BZD type semi-automatic sticky box machine is in recent years the carton manufacturing of new environmental protection equipment, mainly for the carton adhesion, discard the traditional copper nail binding method, improve the production efficiency, ChanPinXing good quality. Main frame: frame, lift workstation, conveying equipment, middle recently conveying equipment, pressure and device, finished product middle side output equipment, electrical control equipment.

The product structure

1. YL-BZD type semi-automatic sticky box machine adopts sophisticated processing technology and high quality steel processing production and become, mechanical efficiency of 40 per minute. Using intelligent Numbers show counter, automatic stacker. 2. The paper sets can be automatically or foot finish lift, convenient and quick improve production efficiency. 3. Gelatinize head use us import high quality aluminum, with high quality stainless steel, rubber wheel choose Japan. Japanese quality of rubber plastic choose the mill, steel jing do sizing barrels by high quality stainless steel pressure to glue natural. Coating adhesive and after fan by strong pressure and drying, after correction by electronic induction automatic output to interrupt pressure and pressure and the control by photoelectric after, set the number of finished product packaging required, automatic horizontal output. 4. Automatic correction department adopts the 180 degrees, the pen-hold grip effectively corrected by pressure from the price scissors paper no. Automatic counting, accumulation and tidy.

Fittings choose:

1. The machine choose 380 V, power 2.2 KW, energy saving, high efficiency. 2. Choose imported Italian belt loop seamless docking belt. 3. Bearing choose the international famous brand TR bearing. 4. Spiral wire rod, ball screw, nut are chosen for 45 # steel, high quality and quenching process processing. 5. Copper set (ZQSn6-6-3) with, drops of oil lubrication, wear-resisting durable. 6. The whole machine are chosen for Taiwan's motor's, low noise, environmental protection, energy saving and low energy consumption.
The Machine technique parameter
Parameters (YL2800 type)
Maximum size (long + wide)×2
2800mm
Minimal size (long + wide)×2
340mm
Maximum size (wide + high)×2
1515mm
Minimal size (wide + high)×2
240mm
Give paper height
900mm
Motor power
2.2KW
Mechanical speed
40m/min
Mechanical weight
1600kg
The main motor power parameters:
No.
Name
Type
Quantity
Add
1
Reduction
WPDS80-1:60-0.75kw
1
Shanghai Fulong
2
Reduction
WPDS60-1:20-0.37kw
2
Taiwan Reyong
3
Reduction motor
GH18-1:15-200w
1
Taiwan, Europe
4
Reduction motor
GH22-1:15-400w
1
Taiwan, Europe
5
Reduction motor
GH18-1:10-200w
1
Taiwan, Europe
6
High-pressure blower
FJ-200w
1
Guangdong Guangzhou
The main electrical parameters:
No.
Name
Brand
Quantity
Add
1
Photoelectric switch
Omron
3
Japan
2
Travel switch
Tend
2
Taiwan
3
counter
Baile
1
Shanghai
4
Abrupt stop
Schneider
1
France
5
Indicator
Schneider
5
France
6
According to the knob
Schneider
7
France
7
Leakage protector
CHINT
1
China
8
Relay
Omron
6
Japan
9
Ac contactor
CHINT
8
China
10
Thermal relay
CHINT
7
China
11
Pedal switch
CHINT
1
China

The steel chooses:

The machine frame, beams, channels, thick wall square tube, thick wall plates, wall plate is USES the high quality of Q235-A steel. Welding place adopts international standard continuous uninterrupted welding technology. All axis adopt high quality parts are all 45 steel modulation processing and processed.

High ticket machine characteristics of choose and buy

1. Equipped with digital display count, facilitate production microcomputer statistics, convenient management. 2. Equipped with adjustment gear axle agencies, in order to adjust the block, the mobile mechanism of pressure, saves time and effort, convenient and precise.
