Home /Products/Corrugated Box Gluing Machine/machinery & High Speed ​​Corrugated Folding Hardware Prefolding Lock Bottom 46 Box Carton Corner Folding Gluing Machine Folder Gluer

machinery & High Speed ​​Corrugated Folding Hardware Prefolding Lock Bottom 46 Box Carton Corner Folding Gluing Machine Folder Gluer

1.0 set
MOQ
machinery & High Speed ​​Corrugated Folding Hardware Prefolding Lock Bottom 46 Box Carton Corner Folding Gluing Machine Folder Gluer
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Gluing Machine
Applicable Industries: Food & Beverage Factory, Printing Shops, Carton Box Industry, Packaging, Printing And Packing
Showroom Location: Egypt, United Kingdom, United States, France, Viet Nam, Pakistan, Russia, Spain, Thailand, Bangladesh, Uzbekistan, Australia
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot Product 2019
Warranty Of Core Components: 1 Year
Core Components: PLC, Motor
Condition: New
Application: Machinery & Hardware, Packaging Industry
Packaging Type: Metal Pallets
Packaging Material: Vacuum Bags
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 380v 50hz 3p
Dimension(L*W*H): 18.8*2.5*2.1M
Weight: 10000 KG
Warranty: 1 Year
Key Selling Points: Energy Saving
Product Name: Folder Gluer Machine
Function: Glue Applying
Glue Type: Normal Cold Glue
Name: Fully Automatic Carton Folder Gluer Machine
Usage: Corrugated Paperboard Folding Gluing
Box Forming: 4/6 Corner, Crash Lock Bottom, Straight Line Boxes
Advantages: Easy Operation
Paper Material: Cardboard 210-800g/ A/B/E Corrugated
Keyword: Folding Carton Box Gluing Machine
Feeding Way: Automatic Feeding
Basic Infomation
Payment & Shipping Terms
Packaging Details: FIRST WRAPPED BY FILM, THEN PACKED INTO VACUUM BAGS, AT LAST FIXED ONTO METAL PALLETS. THIS MACHINE NEEDS TWO 40HQ CONTAINERS.
Supply Ability: 30 Set/Sets per Month
Product Description
Product Overview

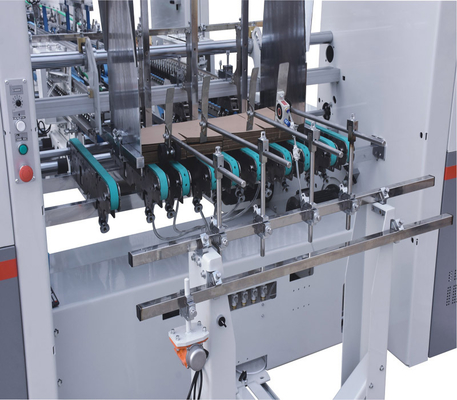

FG-1200Z46 AUTOMATIC FOLDER GLUER MACHINE

Machine structure:
feeder+alignment+pre-folding + lock bottom (4/6 corner system)+side pasting/folding + transfer section + 4.8m long pneumatic conveyor

Options:
1. pnematic conveyor 6.5m long
2. jogger used for flat-mouth corrugated boxes
3. squaring device
FEATURES AT A GLANCE
COMPACT STRUCTURE
WIDE WORKING RANGE
SAFETY SYSTEM
SIMPLE OPERATION
EASY MAINTENANCE
MULTI FUNCTIONS
Feeder
Alignment
Pre-folding
Lock bottom section
Folding
Conveyor
PRODUCT SPECIFICATIONS
No
Item
FG-1200Z46
FG-1500Z46
1
Max paper size
1200*800mm
1500*1100mm
2
Min paper size
400*200mm
400*200mm
3
Total Power
38KW
38KW
4
Max air supply
0.7m3/min
0.7m3/min
5
Max paper weight
800gsm
800gsm
6
Flute corrugated
F,E,C,B,A,BE, AB
F,E,C,B,A,BE, AB
7
Max box thickess
12mm
12mm
8
Total weight
10000KGS
12000KGS
9
Inching speed
20m/min
20m/min
10
Working speed
20-280m/min
20-280m/min
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
FAQ
1. How long is machine quality warranty?
One year.
2. Do your machines have CE certificate?
Yes.
3. What is the leading time of your machine?
10-50 days depending on the machine model.
4. What is the delivery time?
Within 10 days after full payment.
5. Can your company handle shipping for customers?
Yes.(Please provide us your requested seaport and we can compare the shipping charge, then decide to arrange shipping)
6. How about your packing for the machines?
All of our machines are based on standard export packing: first wrapped by films, then fixed onto metal pallets, at last
packed by vacuum bags to avoid rust.
7. How about after-sales service?
Contact us at any time about your problem and we will try to solve your problem as soon as possible.
8. Are you manufacturer?
Yes, we are manufacturer with 20-year experience.
9. Do you have machines on stock?
We have a few machines standard on stock, actually most of our machines are customized, so 10-35 days are almost required to manufacture.
10. What's the payment term?
T/T 30% in advance, the balance is made within one week before delivery.We also accept payment via West Union or irrevocable L/C at sight.
The former of our company is Wenzhou Hade machinery co., Ltd,established in 2007, is a professional manufacturer of box folder gluer machines. We ourselves design, produce, sell and develop folder gluers. In 2019, moved and now located in Pengyue ind zone Pengxi town Taishun county Wenzhou city Zhejiang province China, the advanced and innovative folder gluer supplier.
We have exported more than 100countries like USA, UK, Spain, Russia, Australia, Thailand, Austria, UAE etc
We not only provide the folder gluer machines, but also provide solutions about your box jobs.
What we offer:
1) Good quality control
2) Highly competitive prices
3) Technology products
4) Best professional after-sales team
5) Smooth communication
6) Effective OEM&ODM service
